HVLS Fan

Ceiling Fan(AIR 360®)

AIR 360® Product and description

01. Key components and block diagram of assembly forAIR 360®

  • Product Name

    Industrial HVLS Ceiling Fan

  • Model Name

    AIR 360®

AIR 360® Components
  • 직결구동 SR-모터

    Direct drive SR-motor

  • SRM Driver/Control

    SRM Driver/Control

  • LCD 무선 제어장치

    LCD Wireless R/C

  • 팬 날개 (Air Foil/Blades) - 고객 주문 생산

    Fan wings-Custom made upon request

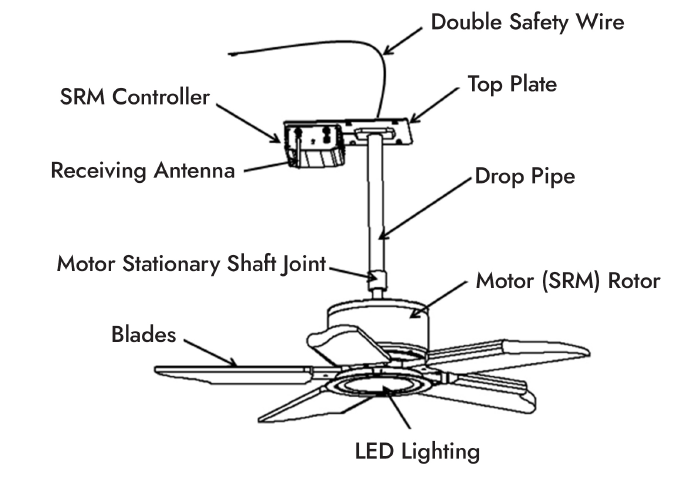

AIR 360® Assembly diagram
Special option-LED lighting and Full Color LCD wireless control system

Lighting : 0-10 level illuminance adjustment

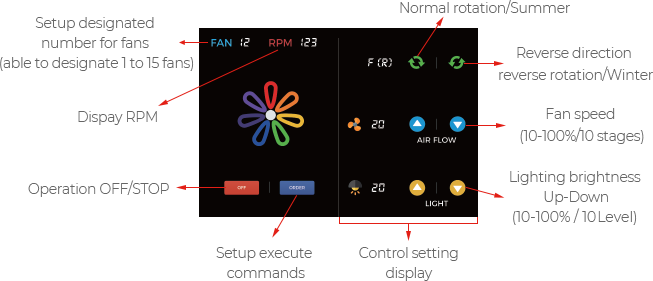

LCD Wireless control display

Precautions

The AIR 360® product must be installed in accordance with the company's designated qualified personnel and applicable installation manual guidelines.

02. AIR 360® Standard

← Please scroll left and right →

Type LCF 300 LCF 400 LCF 500 LCF 600 LCF 700
Fan Diameter 10' 13' 16' 20' 24'
Airfoile Plastic Aluminum Aluminum Aluminum Aluminum
Max Area 1300 sq ft 2500 sq ft 4300 sq ft 5800 sq ft 6800 sq ft
RPM 20 ~ 110 20 ~ 80 20 ~ 60 20 ~ 50 20 ~ 40
Airflow 5-8 fps 5-8 fps 5-8 fps 5-8 fps 5-8 fps
CFM 36,000 62,000 96,000 125,000 162,000
HP 1/3 1/2 3/4 3/4 3/4
Voltage 220Vac Single phase 220Vac Single phase 220Vac Single phase 220Vac Single phase 220Vac Single phase
Power Consumption
(Max)		 342W 350W 358W 366W 375W
Power Consumption
(Avg)		 120W 130W 150W 168W 180W
Operation Control Wireless Remote Control Wireless Remote Control Wireless Remote Control Wireless Remote Control Wireless Remote Control
Weight 84 Ibs 154 Ibs 181 lbs 207 Ibs 242 Ibs

※ Please refer to the manual for details on installation and usage

Features
  • 01

    Direct drive

  • 02

    Low power consumption

  • 03

    Low noise

  • 04

    Light weight

  • 05

    Excellent durability guarantees long life

  • 06

    Price competitiveness

  • 07

    Wireless control makes it easy to use and installation

  • 08

    Easy application of IoT and artificial intelligence

  • 09

    Provide FEMS, BEMS connection data

03. AIR 360® Installation example

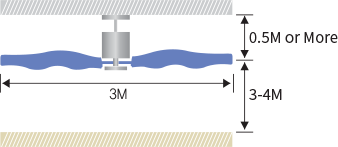

  • LCF-300
    LCF-300

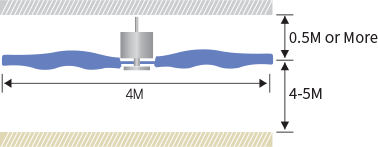

  • LCF-400
    LCF-300

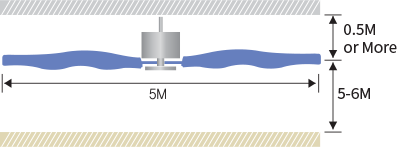

  • LCF-500
    LCF-300
  • LCF-600
    LCF-300

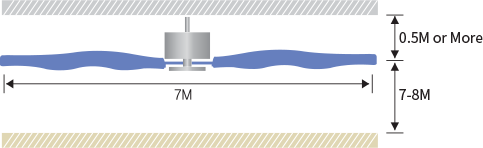

  • LCF-700
    LCF-300

04. Excellent technology and production quality

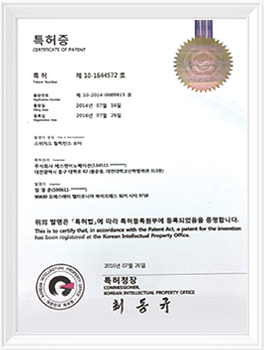

* Patent - Secured source technology (Currently 6 cases in Korea, 1 registered in the U.S.)

HVLS fans (AIR 360®) that use the innovative SRM technology promise better performance and customer benefits.

05. Thorough quality control and excellent domestic and overseas professional production cooperation lines

  • SRM production line exclusive for HVLS Fans

  • SR Motor, control system, Blade production line
